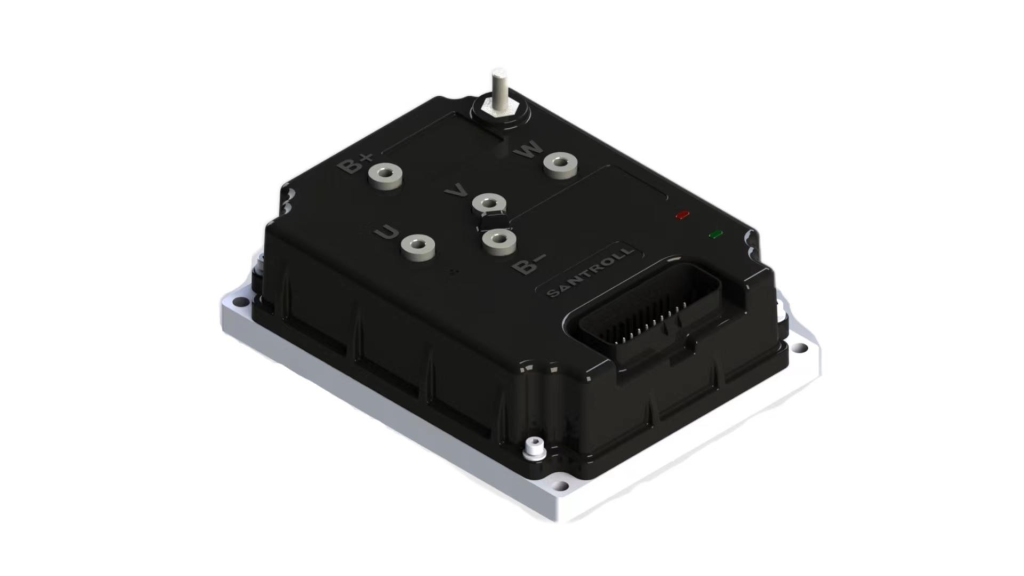

N1 Series BLDC Motor Controller

Santroll’s N1 Series is engineered as a compact, multi-protocol motor controller platform designed for battery-powered industrial mobility. Its compatibility with BLDC, PMSM, and AC induction motors makes it a flexible choice for OEMs in the material handling sector.
Get a Quote

Get The full manual



Product Specification for Inverter N1



N1 Series BLDC Motor Controller Specifications

Compact electric vehicles operating in logistics, warehousing, and manufacturing environments benefit greatly from the N1 Series controller’s compatibility and reliability. Its performance is optimized for pallet stackers, low-level order pickers, and other battery-driven industrial equipment.

Technical Highlights

  • Supported Motors: ACIM, PMSM, and BLDC
  • SZ7230: 24V (220A peak / 110A rated), 36–48V (180A peak / 90A rated)
  • SZ9224: 24V (320A peak / 160A rated), 36–48V (280–320A peak), 80V (200A peak)
  • Protection Level: IP67-rated, waterproof and dustproof
  • Connectors: AMPSEAL-35P, with defined U/V/W, CAN, and sensor pins
  • Certifications: EN1175-1, UL 583, EMC EN12895:2015

Key Advantages

  • Motor Versatility: One controller for multiple motor types
  • Compact & Durable: Built for rough operating environments
  • Simplified Integration: Standard wiring, clear pinout, and fast setup
  • Certified Safety: Meets global safety and EMC compliance requirements
  • Consistent Control: Reliable operation in light-duty material handling vehicles
controller exploded view

Application Areas

Commonly deployed in electric forklifts, pallet stackers, order pickers, and other mobile industrial machinery requiring low-to-mid power motor control in compact form factors.
