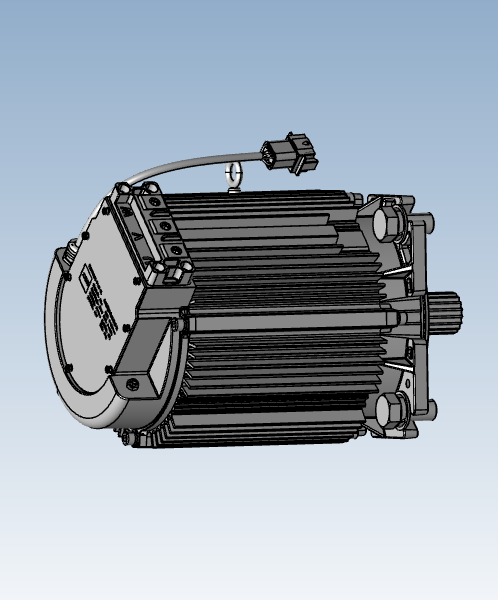

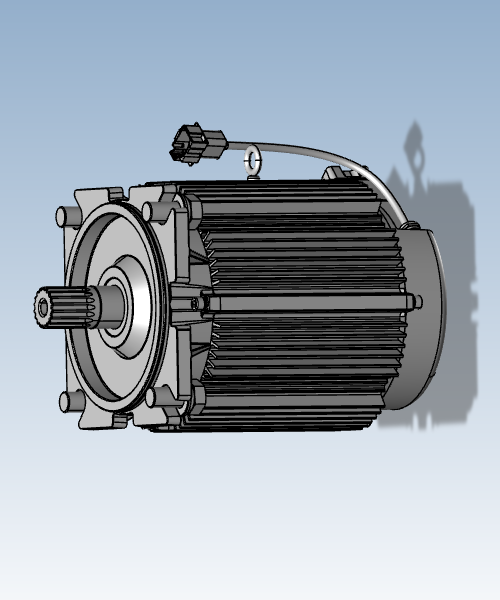

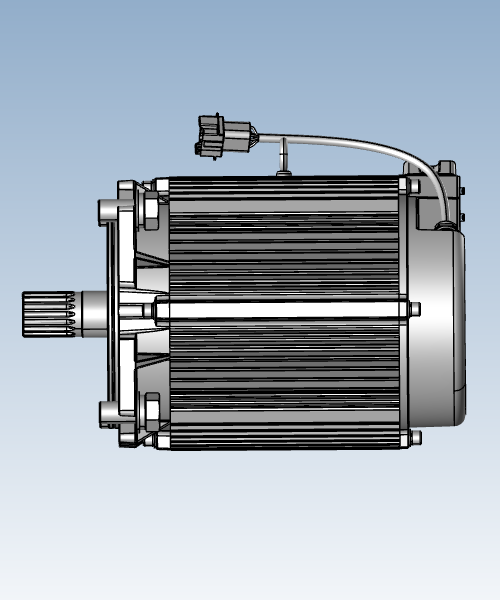

TZ200XB08-T145-DL

    • This Permanent Magnet Synchronous Motors (PMSMs) is designed to deliver high efficiency, compact size, and reliable performance.
    • To ensure outstanding quality, our R&D engineers employ advanced electromagnetic simulation, vibration simulation, and thermal simulation throughout the design process. These methods guarantee that each motor achieves optimal performance, durability, and stability under various operating conditions.
    • Compared with traditional motors, our PMSMs offer higher power density, lower energy consumption, reduced noise, and longer service life. Their compact design makes them ideal for applications where space and efficiency are critical.
    • Our PMSMs are widely applied in electric skateboards, e-bikes, e-motorcycles, golf carts, utility vehicles, and agricultural machinery, providing smooth and reliable power for a wide range of mobility and industrial solutions.
Get a Quote

Get The full manual



Standard Motor series catalogue



TZ200XB08-T145-DL

The theoreticalweight of the motor is 28kg; Cogging torque is 0.45N·m (test before installing oil seal); the radial circle runout is ≤0.035mm, the axial clearance is 0.3mm, and the noise of the motor during no-load operation is less than 65dB.

Duty: S3-15%/S2 (working system with non-periodic changes in load and rotating speed), the external temperature of the motor is -40℃-50℃ when working.

Other performance requirements shall comply with relevant requirements of QC/T 792-2007.

Technical Highlights

  • Voltage Range: 80V DC
  • Rated Power: 15kW
  • Peak Power: 50kW
  • Rated Speed: 3600rpm
  • Peak Speed: 6000rpm
  • Rated Torque: 40Nm
  • Peak Torque: 270Nm

Key Advantages

  • High efficiency ensures minimal energy loss and maximum performance output.
  • Compact structure allows integration in space-constrained designs and lightweight systems.
  • High power density and strong torque enable superior acceleration and load capacity.
  • Low vibration and noise levels provide smooth, quiet, and stable operation.
  • Enhanced reliability and extended lifespan are achieved through advanced electromagnetic, vibration, and thermal simulation verification.
