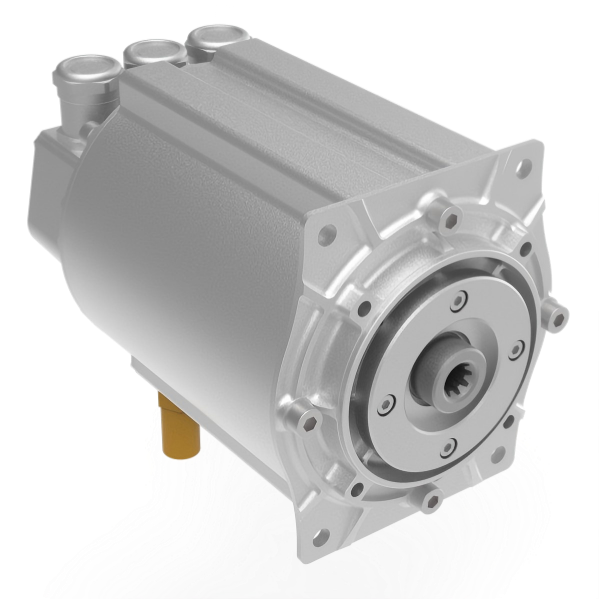

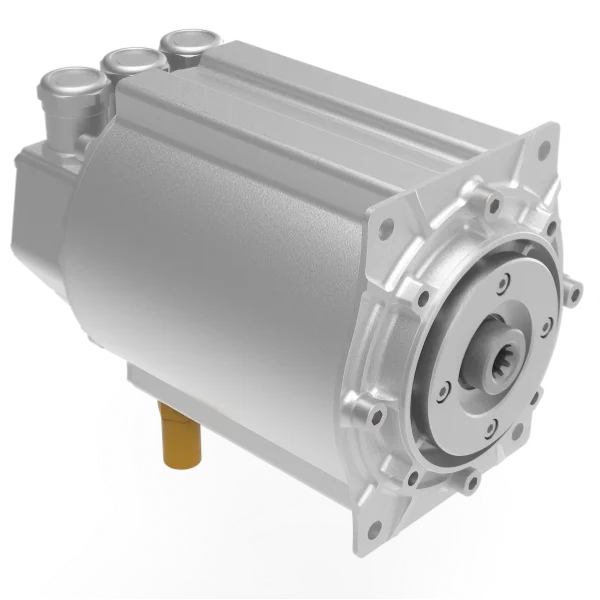

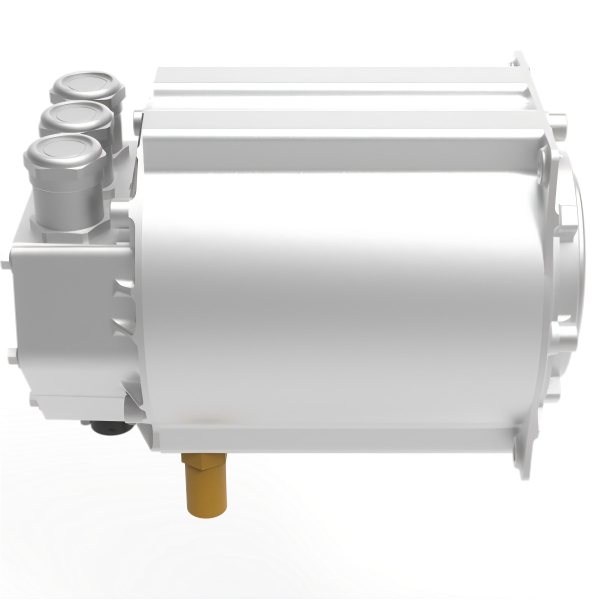

SZ-122-PMSM-RW-W

  • The stator adopts round copper wire winding, providing a mature, reliable, and cost-effective solution within a compact 122 mm diameter.
  • The water-cooled structure provides efficient heat dissipation and supports stable continuous operation.
  • Stator stack thickness ranges from 30 mm to 200 mm.
  • Wide rated speed range: from 1,000 to 4,000 RPM.
  • Wide rated power range: from 0.81 kW to 21.666 kW.
  • Flexible configurations are available for different power and installation requirements.
  • Cost-efficient through standardized and serialized product design.
Get a Quote

Get The Full Manual



OD 122 MM Standard Motor Catalogue (Liquid-cooling)



122 Series Motor Specifications

Engineered for compact industrial applications, the 122 Series combines Santroll’s round-wire motor technology with liquid cooling to deliver reliable performance and efficient thermal management. This series is ideal for space-constrained applications requiring flexible power output and stable continuous operation.

Technical Highlights

  • Stator Diameter: 122 mm
  • Stator Stack Thickness: 30–200 mm
  • Rated Speed: 1,000–4,000 RPM
  • Rated Torque:7.5 –55 N·m
  • Rated Power: 0.81–21.67 kW
  • Voltage Range: 24V–720V DC
  • Overload Capability: Up to 2 × rated torque

Key Advantages

  • Surface-Mounted Permanent Magnet (SPM)
  • Concentrated Winding
  • Carbon-Fiber-Wrapped Rotor
